Laerdal

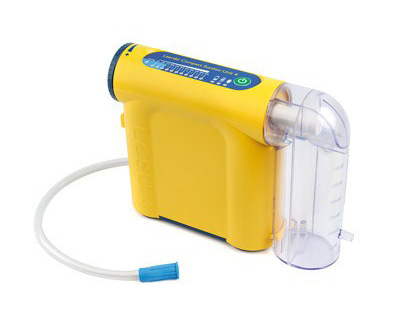

Compact Suction Unit (LCSU) 4, 300mL

Laerdal

Compact Suction Unit (LCSU) 4, 300mL

QTY

$529.99

MFR# 88006001

BP# LAE88006001

Laerdal’s LCSU 4 suction unit combines rugged design with lightweight portability, an essential tool for every first responder.

Unique Click-in-Place Canister

No vacuum tube between the canister and the suction pump is necessary - just click-in-place and go.  A clean and efficient solution, a used canister can be replaced quickly with a new one when suctioning is completed. The canister is sealed, with an internal filter. The filter automatically stops suction/flow when the canister is full or the filter becomes saturated if the unit tips onto its side during use. Once wet the filter forms a gel which prevents ingress of fluid into the pump.

Features

  • One-hand-grip design
  • Small and lightweight
  • Click-in-place 300 ml canister, no vacuum tube needed
  • 800 ml canister option when extra volume is needed
  • Disposable canister systems
  • Easy to convert between 300 and 800 ml canister version
  • Internal integrated filter systems for all canisters
  • High efficiency filter kit (for 800 ml solution)
  • HEPA rated bacterial filter
  • Latex free
  • Big vacuum regulator dial, with “clicking sound”
  • LED display for use day or night
  • Battery level indicator
  • Children vacuum range area (marked in blue) on the control panel
  • Arrows pointing the vacuum directions
  • Wire Stand for stability (for both versions)
  • High density carry bags
  • No-tools-necessary field changeable battery
  • Rechargeable Battery, NiMH 12 volt 1.6 Ah.
  • Battery run time: Approximately 45 minutes (free flow)
  • AC/DC Adapter Charger (100-240 V)
  • External Battery Charger
  • 12V DC Power-cord for connection to vehicle connection
  • 2 year limited warrenty (excluding the canisters, tubing systems and battery. Battery = 90 days)
  • Multi languange Directions for Use (19 languages)
  • CE marked - This product is in compliance with the essential requirements of Council Directive 93/42/EEC Medical Device Directive, as amended by Council Directive 2007/47/EC, class IIa

Performance

  • High flow / High vacuum
  • Air Flow @ Vacuum Inlet: 30 LPM (free flow) typical
  • Vacuum - Max.: 550+ mmHg (73.3 kPA)
  • Vacuum - Range: 50 - 550+ mmHg (6.7 - 73.3 kPa)

Dimentions

  • 300 ml canister version: 18.5 cm x 26.2 cm x 8.12 cm (7.3" x 10.3" x 3.2")
