Allied HPI

LSP Half Back Vertical Extrication Device Kit

Allied HPI

LSP Half Back Vertical Extrication Device Kit

QTY

$981.05

MFR# L722

BP# ALLL722

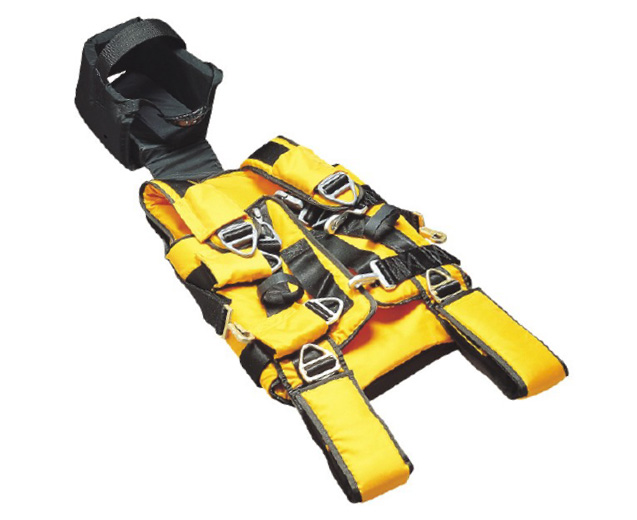

The rugged and versatile LSP Half Back is a unique vertical extrication device that combines the capabilities of a full body harness with the ability to immobilize the patient if cervical/spinal trauma is suspected. The LSP Half Back consists of two components: a rugged, padded full body harness and a removable aluminum back stay with head immobilizer. This unique design allows for rapid immobilization and vertical extrication of a patient in a confined or elevated space, including but not limited to high rise buildings, storage tanks, ships and automobiles.

  • Removable aluminum back stay allows the LSP Half Back to be used as an immobilization device or as a rescue harness

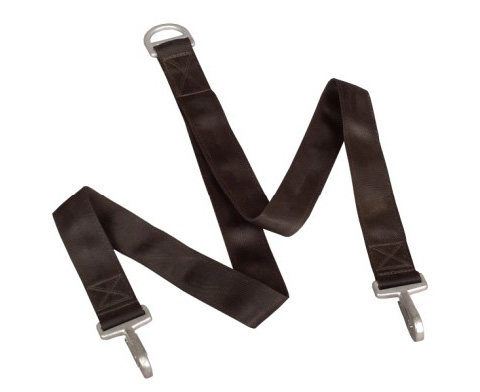

  • Optional Vertical Lift Strap allows for quick vertical extrication of the patient
  • Closed-cell foam interior molds to the shape of the body, providing comfort and more complete body immobilization
  • Optional Helmet Immobilizer allows for treatment of helmeted victims

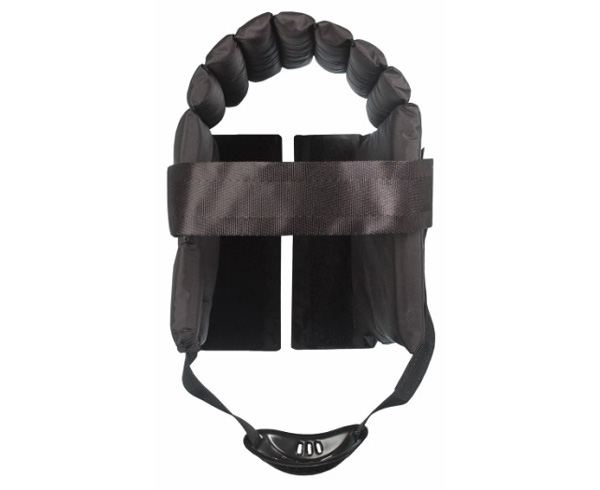

  • Comes complete with a V-shaped padded head rest and a full standard head immobilizer

Kit Includes:

  • LSP Half Back Vertical Extrication Device
  • Vertical Lift Strap
  • Helmet Immobilizer
  • Color: High-visibility yellow with black straps
  • Weight of Vest: 7.5 lbs. (3.4 kg)
  • Weight of Back Stay & Head Harness: 3.5 lbs. (1.6 kg)
  • Dimensions Open: 34" (86.4 cm) long x 36" (91.4 cm) wide
  • Dimensions Closed: 34" (86.4 cm) long x 12" (30.5 cm) wide x 7" (17.8 cm) thick
  • Jacket: 2-ply water-repellent 1,000 denier Cordura® nylon; minimum tensile strength of 557 lbs. (253.2 kg) for each ply
  • Foam: 0.5" (12.7 mm) thick 2# non-absorbent closed-cell polyethylene
  • Back Stay: 5" (12.7 cm) wide x 33.5" (85.1 cm) long x 3/16" (4.8 mm) thick; 5052-H32 anodized aluminum alloy
  • Straps: 2" (5.1 cm) wide black nylon webbing with a minimum 6,000 lbs. (2,721.6 kg) tensile strength
  • Hardware: Forged alloy steel with a proof load of 2,500 lbs. (1,134 kg); mil spec P5220441
  • Velcro: 0.75" (19 mm) and 2" (5.1 cm) black hook & loop
